Electrode Paste

Electrode Paste

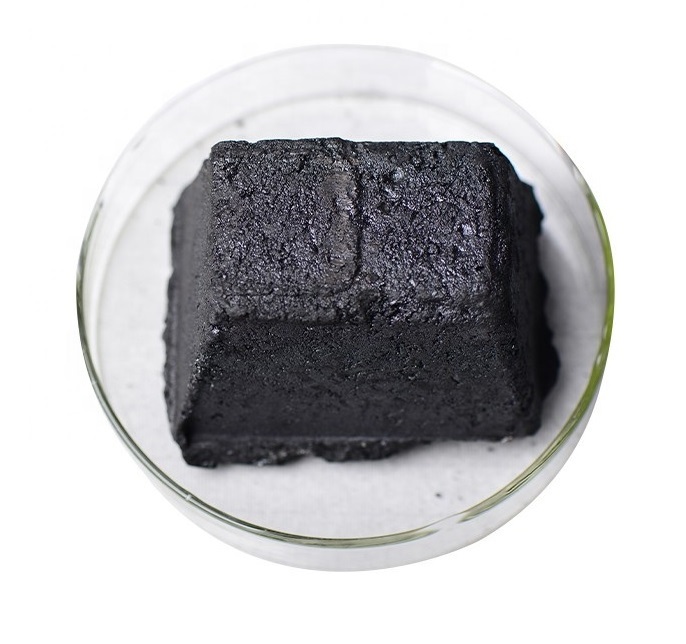

Carbon Electrode Paste is a self-baking electrode used in S.A.F. furnace as continuous self-baking electrode to produce FeSi, FeSiMn, FeMn. FeCr, and other Ferro Alloy and Its customised products specification will provide according to customer’s furnace, the capacity and final product























Specification: (Standard: YB/T 5215-2015) :



Model

Closed Type Furnace

Standard Electrode Paste

S#

I #

II #

I #

II #

III #

Ash (%)

3.0

4.0

6.0

7.0

9.0

11.0

VM (%)

12~15.5

12~15.5

12~15.5

9.5~15.5

11.5~15.5

11.5~15.5

Compression Strength (Mpa)

19

18

18

22

21

20

Electricity Resistivity

(μΩm)

55

65

75

80

85

90

Bulk Density (g/cm3)

1.46

1.40

1.40

1.40

1.40

1.40

Extensibility (%)

5~20

5~20

5~20

5~30

15~40

15~40

Flow Coefficient Rate

1.8~2.0

1.8~2.0

1.8~2.0

1.5~2.0

1.5~2.0

1.5~2.0

Note:

  1. Extensibility and flow coefficient rate is only for reference.



  1. We can provide electrode paste according to the standard, and also can produce according to customer’s requirement.



  1. S# is our customized electrode paste with low Ash, low electricity resistivity, and excellent performance. It can save ~20% electrode paste consumption than others. Save electrode paste consumption doesn’t only mean save the cost of electrode paste, but also save the electrode paste column shell cost, welders cost, power consumption cost, etc.
